12068

Product Specs

• Product Details
  •

    ESD Safe	No
    Series	15 Series, 40 Series
    Orientation	Universal
    Material	Zinc
    Grade	Die-Cast
    Finish	Powder Coated
    Color	Black
    Process	Die Cast
    Max Load	300 Nm / 221 ft-Lbs.
    A	42.00mm
    B	60.00mm
    C	34.00mm
    D	38.00mm
    E	21.15mm
    F	6.50mm
    G	8.50mm
    H	8.00mm
    Weight	0.459000

• Description

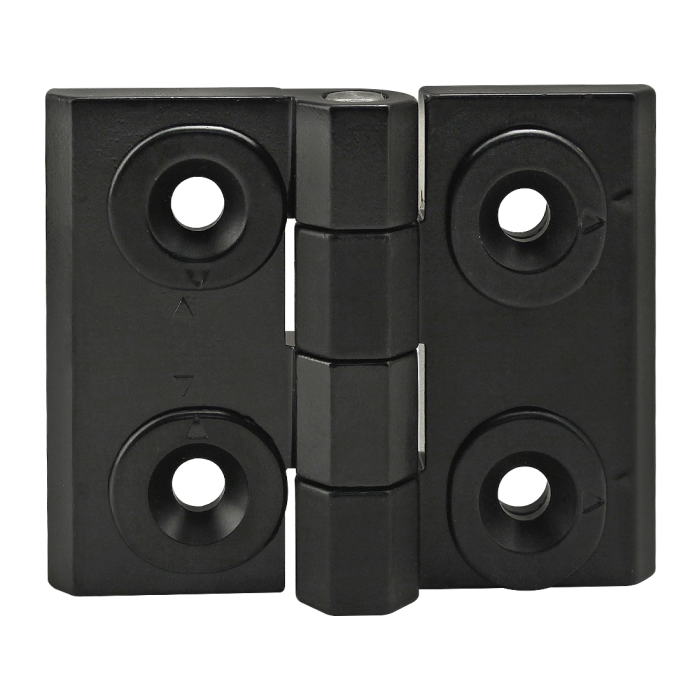

  • The 4-hole universal adjustable hinge is die cast zinc with a black powder coat. It is commonly used to connect T-slot profiles. As the name implies, the universal hinge has both horizontal and vertical slotted holes. The slotted holes support fastening adjustments.

• Sugg. Hardware

  • Per Leaf Mount to T-slot

    Series	Part Number	Qty	Description
    	75-3628	2	Bolt Assembly: M6 x 18.00mm Black FHSCS with Standard Drop-In T-Nut - Bright Zinc

    Per Leaf Mount to Panel LTE .250" / 6mm

    Series	Part Number	Qty	Description
    	75-3589	2	Bolt Assembly: M6 x 20.00mm Black FHSCS with Washer and Hex Nut - Black Zinc
