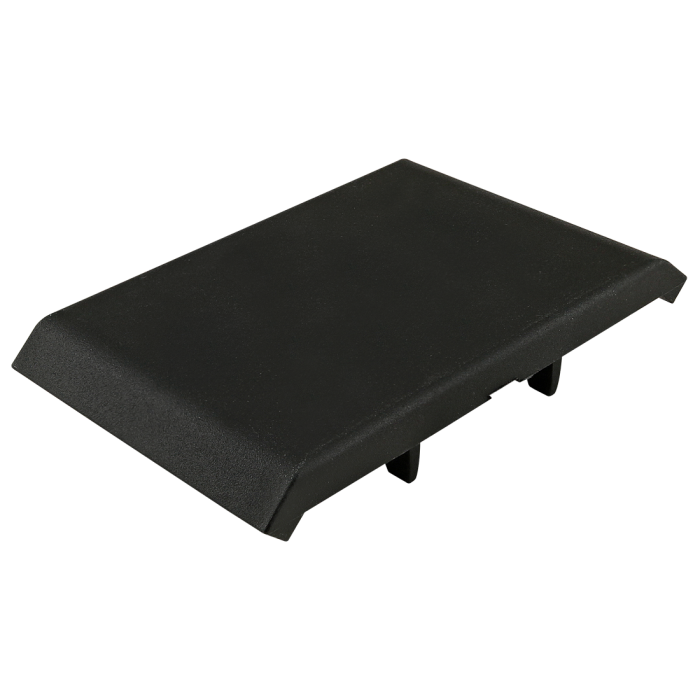

Product Specs

• Product Details
  •

    Series	30 Series
    Bracket No.	14095
    Material	PA6 GF 30
    A	17.00mm
    B	87.00mm
    C	7.00mm
    D	56.70mm
    Weight	0.060200
