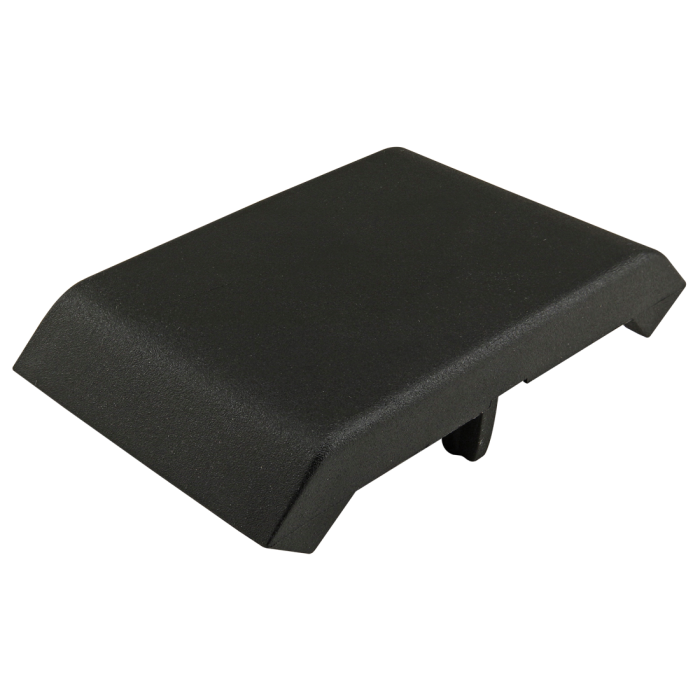

Product Specs

• Product Details
  •

    Series	45 Series
    Material	PA6 GF 30
    A	20.00mm
    B	70.00mm
    C	3.00mm
    D	42.20mm
    Weight	0.038100

• How To
• CAD Files

  • ** In accordance with GDPR requirements, in order to download CAD files you will need to sign in to your PartCommunity account below, after clicking Generate. A partCommunity account is separate from your 80/20 account. If you do not have a PartCommunity account, you will need to create a free account.

    Generate
