12000

Product Specs

• Product Details
  •

    ESD Safe	No
    Series	15 Series, 40 Series, 45 Series
    Material	Nylon PA
    Color	Black
    Process	Injection Molded
    A	16.00mm
    B	8.70mm
    C	198.00mm
    D	19.00mm
    E	100.00mm
    F	80.00mm
    G	12.50mm
    H	38.00mm
    Weight	0.168000

• Description

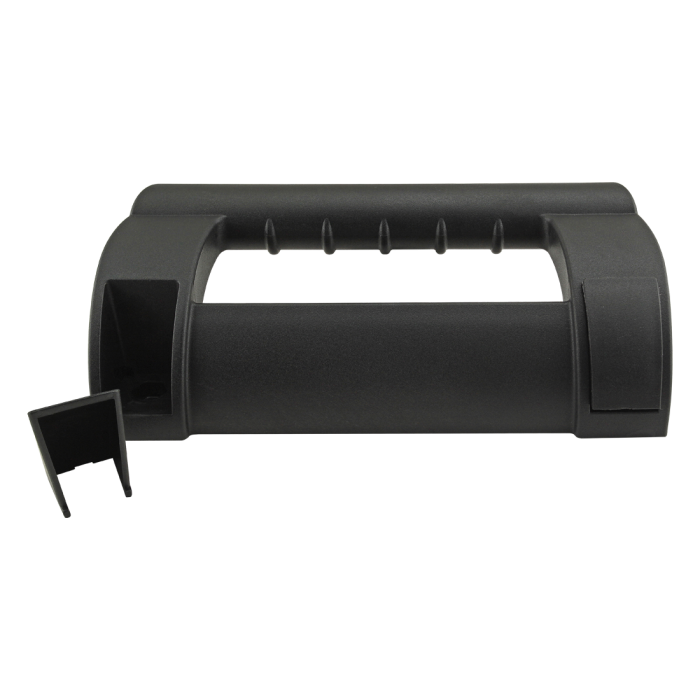

  • The ergonomic plastic handle is made of durable yet lightweight fiberglass-reinforced nylon. It is corrosion-resistant, lending it to both indoor and outdoor applications. The handle has an easy to grip design and an offset, closed side for finger protection. The ergonomic plastic handle mounts directly to a T-slot profile.

• Sugg. Hardware

  • Mount to T-Slot

    Series	Part Number	Qty	Description
    	3454	2	Bolt Assembly: 5/16-18 x .625" Black SHCS and Slide-In Economy T-Nut - Offset Thread - Black Zinc
    	75-3621	2	Bolt Assembly: M8 x 16.00mm Black SHCS with Slide-In Economy T-Nut - Offset Thread - Bright Zinc
    	75-3623	2	Bolt Assembly: M8 x 16.00mm Black SHCS with Standard Drop-In T-Nut - Bright Zinc
