3764

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Bright
    Type	SAE Flat
    Mfg Standard	ANSI B18.22.1

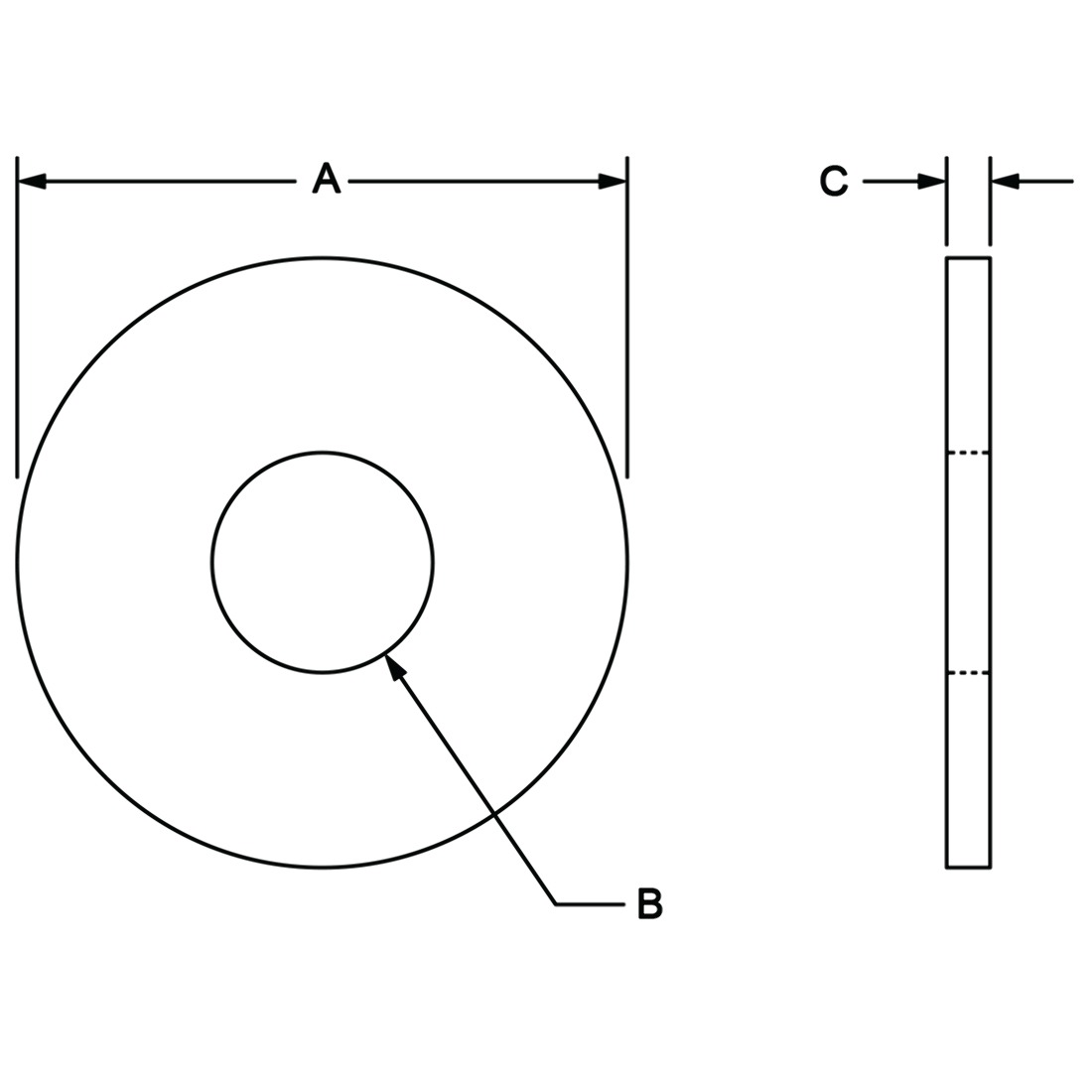

    A	1.387"
    B	.567"
    C	.109"
    Weight	0.038000
