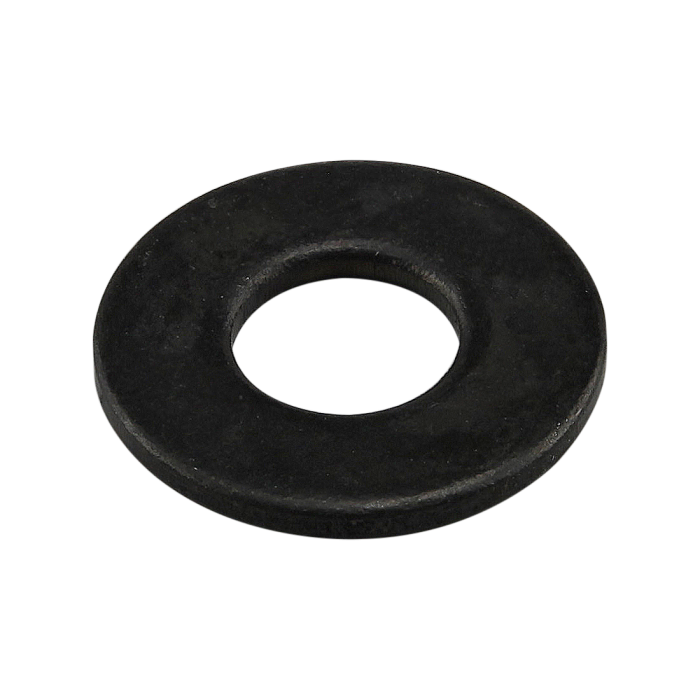

3006

Product Specs

• Product Details
  •

    Series	Fractional
    Material	Steel
    Finish	Zinc
    Color	Black
    Type	SAE Flat
    Mfg Standard	ANSI B18.22.1
    A	.438"
    B	.188"
    C	.049"
    Weight	0.001000
