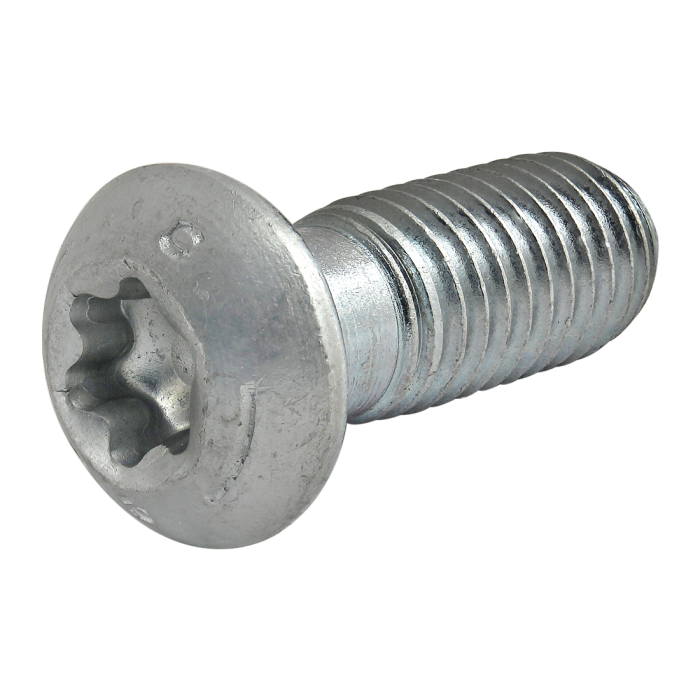

13004

Product Specs

• Product Details
  •

    Series	Metric
    Material	Steel
    Finish	Zinc
    Color	Bright
    A	20.00mm
    B	T-50
    C	6.00mm
    D (Length)	30.00mm
    E (Thread)	M12 x 1.75
    Thread Length	22.25mm
    Weight	0.062000
